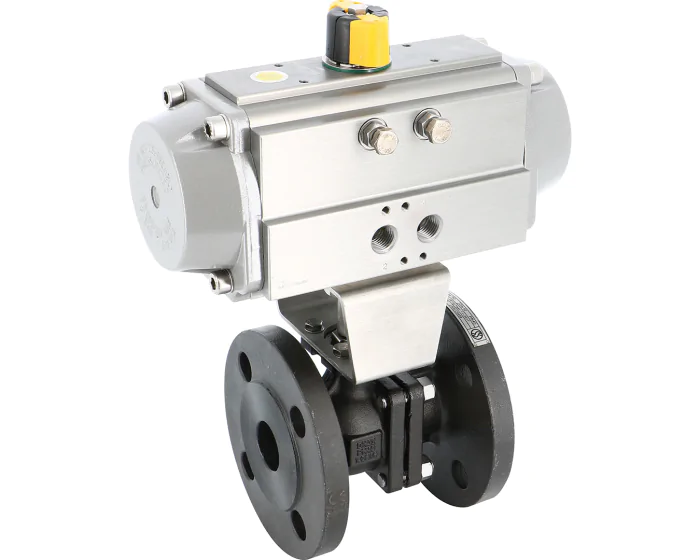

The 507 series ball valve has a cast iron body, stainless steel ball and PTFE seats. It is actuated with a double acting or spring return pneumatic actuator from ALPHAIR. EN 558 series 27 face to face. PS: 16 bar, TS: 200°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| DN | DN200 - 8'' |
| Face to Face (mm) | 400.0 |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| Ball material | Stainless steel 304 |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Full 2-piece body DN15 - 1/2'' Double acting | 270222017006R | S1000066 |
€309.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN15 - 1/2'' Spring return | 270222017107R | S1000067 |
€359.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN20 - 3/4'' Double acting | 270223017006R | S1000068 |
€314.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN20 - 3/4'' Spring return | 270223017107R | S1000069 |
€364.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN25 - 1'' Double acting | 270224017006R | S1000070 |
€328.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN25 - 1'' Spring return | 270224017108R | S1000071 |
€425.03
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN32 - 1''1/4 Double acting | 270225017006R | S1000072 |
€349.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN32 - 1''1/4 Spring return | 270225017108R | S1000073 |
€446.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 Double acting | 270226017008R | S1000074 |
€373.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN40 - 1''1/2 Spring return | 270226017109R | S1000075 |
€461.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' Double acting | 270227017008R | S1000076 |
€409.09
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN50 - 2'' Spring return | 270227017110R | S1000077 |
€569.09
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 Double acting | 270228017008R | S1000078 |
€433.26
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN65 - 2''1/2 Spring return | 270228017110R | S1000079 |
€593.24
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' Double acting | 270229017009R | S1000080 |
€517.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN80 - 3'' Spring return | 270229017111R | S1000081 |
€817.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' Double acting | 270230017010R | S1000082 |
€704.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN100 - 4'' Spring return | 270230017113R | S1000083 |
€1,213.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' Double acting | 270231017011R | S1000084 |
€994.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN125 - 5'' Spring return | 270231017114R | S1000085 |
€1,624.53
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN150 - 6'' Double acting | 270232017012R | S1000086 |
€1,371.63
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN150 - 6'' Spring return | 270232017115R | S1000087 |
€2,403.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Full 2-piece body DN200 - 8'' Double acting | 270233017014R | S1000088 |
€2,067.09
(excl. btw)
|
add to cart |
